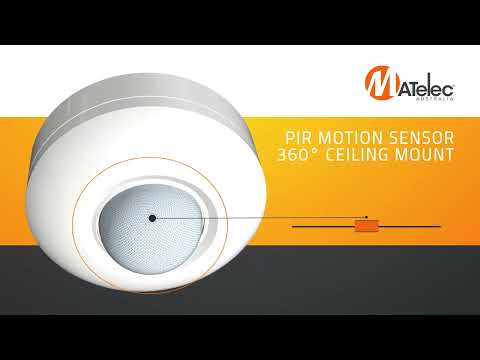

360° Econo PIR Recessed/Surface Motion Sensors

  • Enlarged cable entry for easy wiring
  • Easy access to setting controls under front cover
  • Stainless steel fixings supplied
  • 5-year warranty
SPECIFICATIONS
  • Mounting: Flush/recess and surface ceiling, all in one
  • Weatherproof rating: IP44
  • Detection angle: 360°
  • Detection range: 6 to 16 meters
  • Switching capacity:
    • 1000W (LED)
    • 1000W (fluorescent)
    • 2000W (incandescent)
  • Min LED load: 1W
  • Manual override: Yes
  • Adjustments: Time, lux and sensitivity
  • Time delay: 10 sec - 30 mins
  • Lux adjustment: Dawn to dusk (3-2000lux)
  • Voltage: 220 - 240 Vac 50Hz
  • Colour: White
  • Dimensions: 104mm Ø x 38mm (H)
  • Cut-out hole: 82mm Ø
  • Certification: CE, RoHS, SAA

SKU Description MOQ Units CTN
FMS-50000 360° Econo White PIR Recessed/Surface Motion Sensor 1 Each 50
